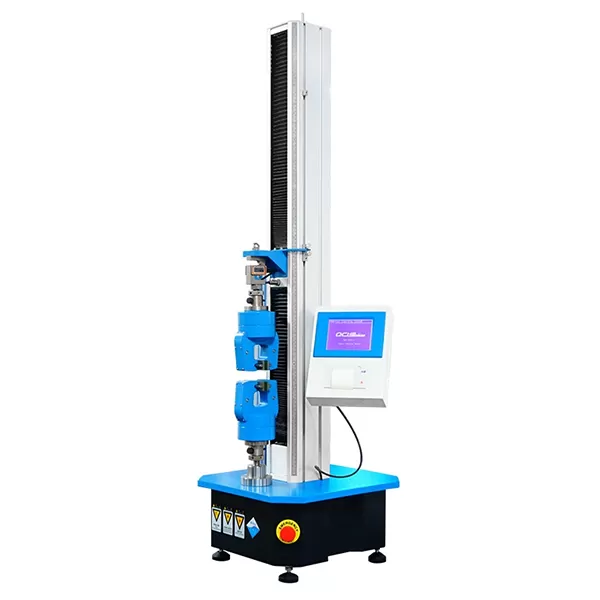

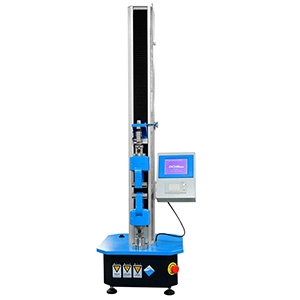

2500N Electronic Footwear Testing Equipment

Introduction:2500N Electronic Footwear Testing Equipment ,Tensile Strength Testing Equipment

Introduction：

Fabric Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

Usage：

Used for cotton, wool, linen, silk, wool fiber fabric, non-woven fabric, paper, ribbon and nonwoven fabric yarn tensile breaking strength and breaking elongation of determination

Test Standard：

GB/T 3923.1,GB/T 3923.2,GB/T 3917.2,GB/T 19976,ISO 13934.1,ISO 13934.2

ISO 13935.1,ISO 13935.2,ASTM D5035,ASTM D2261,ASTM D 5034

(ps:difference test standards with different fixtures)

Technical Parameters：

Technical Index	HD-B609-1
Working mode	CRE principle, microcomputer control
Max. Force	50N,100N,500N,1000N,2500N(Optional)
Test accuracy	≤0.2%F·S
Tensile speed	0.01~500mm/min
Max.elongation	600mm
Blessing ways	Manually
Dimension	670x480x1440mm
Net Weight	60KG
